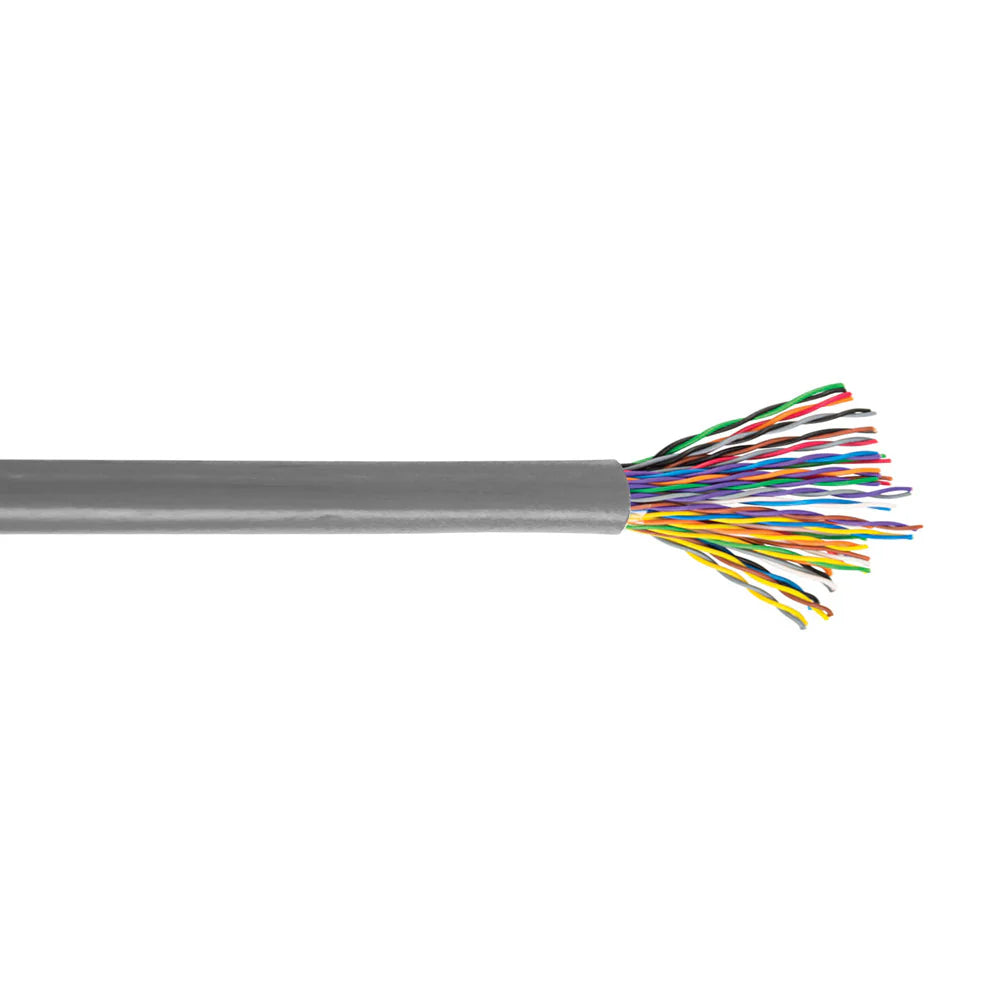

1000ft 25 Pair CAT3 Solid UTP FT4/CMR/CL3 Bulk Cable - Grey
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
This bulk Cat3 cable is 1000 feet in length and consists of a 25 pairs of 24AWG wires. It is typically used to terminate telco blocks to one another.
| Physical Characteristics | |||
|---|---|---|---|
| Cable Length | 1000 foot [305m] | ||
| Color | Grey | ||
| Cable Diameter | 10.80±0.10mm | ||
| Number of Pairs | 25 Pairs | ||
| Color of Pairs | Blue-White, Orange-White, Green-White, Brown-White, Gray-White, Blue-Red, Orange-Red, Green-Red, Brown-Red, Gray-Red, Blue-Black, Orange-Black, Green-Black, Brown-Black, Gray-Black, Blue-Yellow, Orange-Yellow, Green-Yellow, Brown-Yellow, Gray-Yellow, Blue-Violet, Orange-Violet, Green-Violet, Brown-Violet, Gray-Violet |
||
| Wire Gauge | 24 AWG | ||
| Conductor Material | 100% Bare Copper | ||
| Conductor Diameter | 0.475±0.005mm | ||
| Jacket Material | PVC - Polyvinyl Chloride | ||
| Jacket Rating | CMR/CL3/FT4 [Riser Rated] | ||
| Cable Shielding | None | ||
| Temperature Rating | -20ºC ~ 75ºC |
||
| Jacket Average Thickness | 0.85mm | ||
| Jacket Minimum Thickness | 0.77mm | ||
| Insulation | PE | ||
| Insulation Average Thickness | 0.203mm | ||
| Insulation Minimum Thickness | 0.185mm | ||
| Insulation Diameter | 0.88±0.01mm | ||
| Twisted Pair Diameter | 1.76±0.02mm | ||
| Assembly Diameter | 3.50±0.20mm | ||
| Rip Cord | Yes - Nylon | ||
| Electrical Characteristics | |||
| Before Aging | Tensile Strength (Mpa): >=13.8 Elongation (%): >=100 |
||
| Aging Condition (ºC x hrs) |
100x168 | ||
| After Aging | Tensile Strength (Mpa): >=85% of unaged Elongation (%): >=50% of unaged |
||
| Approvals | |||
| ETL | Compliant | ||
| c(ETL)us | Compliant | ||
| Environmental | |||
| RoHS | Compliant | ||
| Packaging Information | |||
| Package Quantity | 1 | ||
| Product Weight | 100 lbs [45.36kg] | ||
