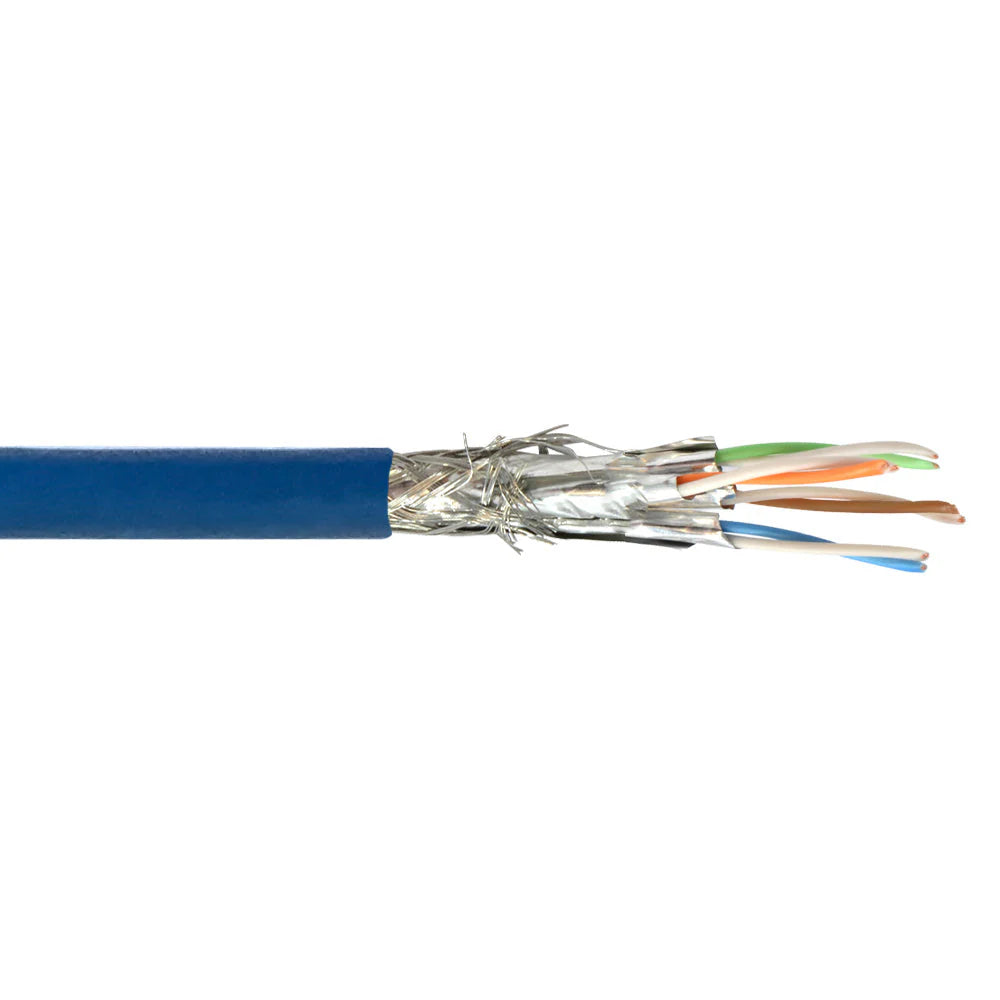

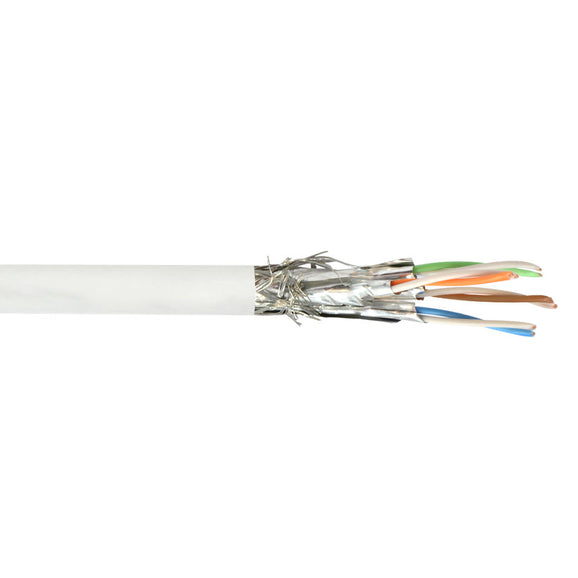

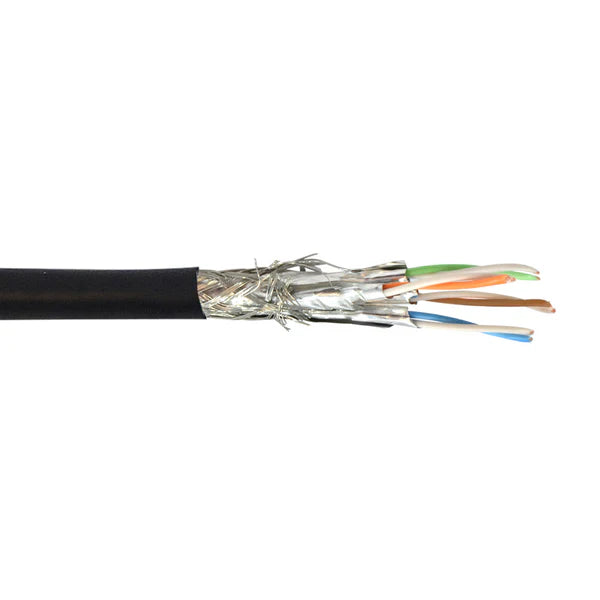

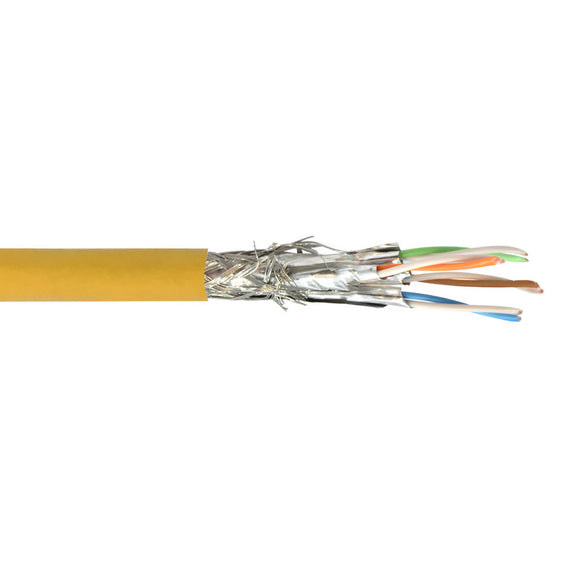

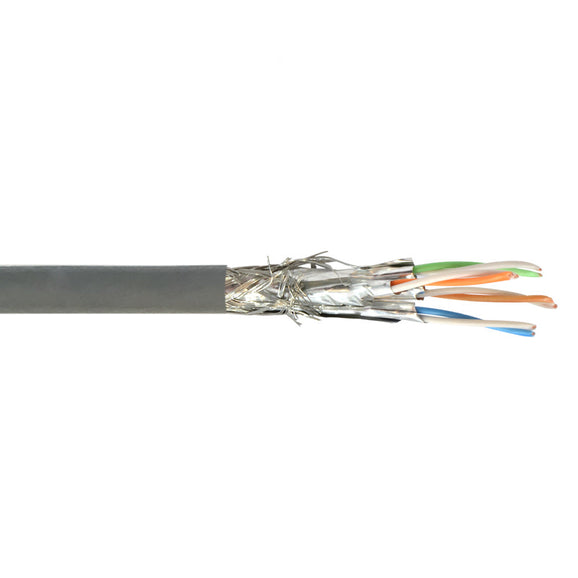

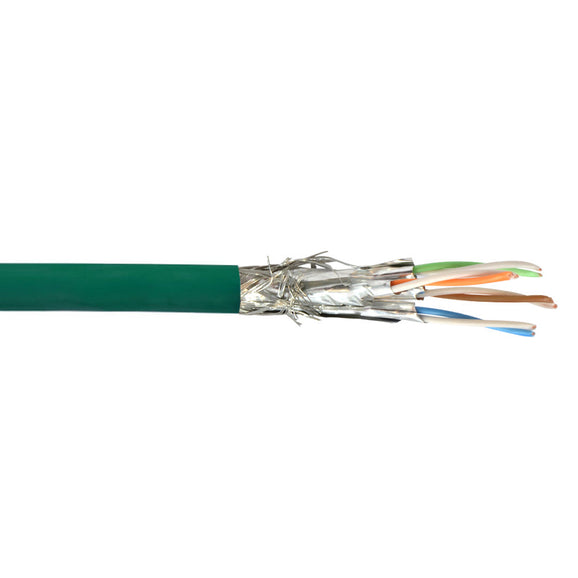

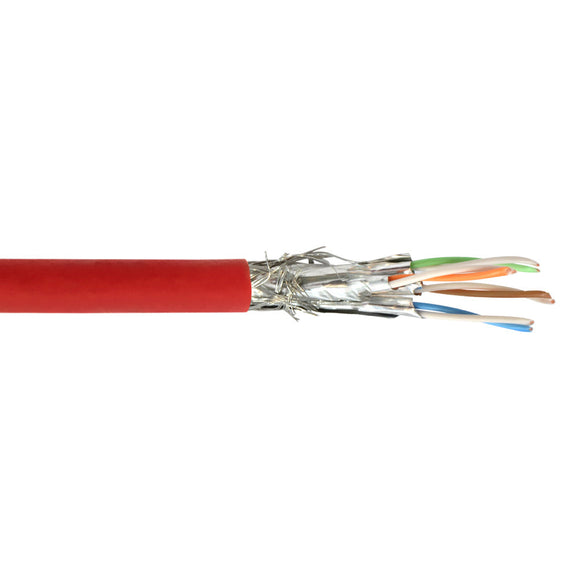

This bulk riser rated Cat6a cable is 1000 feet in length and consists of 4 pairs of 26AWG stranded wires with individually foil shielded pairs plus an overall braid. It is typically used to manufacture shielded Cat6a patch cables and terminated with shielded RJ45 plugs.
| Physical Characteristics | |||
|---|---|---|---|
| Cable Length | 1000 foot [305m] | ||
| Cable Diameter | 6.80 mm | ||
| Number of Pairs | 4 Pairs | ||
| Wire Gauge | 26 AWG Stranded | ||
| Conductor Material | 100% Bare Copper | ||
| Construction | 7/0.16±0.008 mm | ||
| Stranded Diameter | 0.6 mm | ||
| Insulation | PE | ||
| Insulation Nominal Thickness (mm) | 0.22mm | ||
| Insulation Diameter (±0.005) | 1-1.05 | ||
| Jacket Material | PVC - Polyvinyl Chloride | ||
| Jacket Rating | CMR/FT4 [Riser Rated] | ||
| Jacket Outer Diameter (±0.2mm) | 6.0 | ||
| Jacket Nominal Thickness (mm) | 0.5 - 0.6 | ||
| Temperature Rating | 75 deg C | ||
| Electrical Characteristics | |||
| Before Aging | Insulation Tensile Strength: >1.68 Kgf/mm2 Elongation (%): >300 |
||
| Aging Condition (ºC x hrs) |
100x168 | ||
| After Aging | Jacket Tensile Strength: >1.41 Kgf/mm2 Elongation (%): >=100 |
||
| Max. Conductor DC Resistance (/KM) | 26:138 | ||
| Min. Conductor DC Resistance (/KM) | PE:100M | ||
| Dielectric Strength | AC-500V/1 Min No Breakdown | ||
| DC Resistance Unbalance | Max. 2% | ||
| Pair-to-Ground Capacitance Unbalance | Max. 330PF/100M | ||
| Input Impendence |
4-100MHz 100+/-15ohm |
||
| Mean Characteristic Impedance | @100MHz: 100+/-5 Ohms | ||
| Nominal Velocity of Propagation (NVP) | 68±2% | ||
| Propagation Delay | @ 100MHz ≧ 537.6 ns/100m | ||
| Propagation Delay Skew | Max. ≧ 45 ns/100m | ||
| Approvals | |||
| ETL | Yes | ||
| c(UL)us | Yes | ||
| Environmental | |||
| RoHS | Yes | ||
| Packaging Information | |||
| Package Quantity | 1 | ||
| Product Weight | 25.96 lbs [11.77 kg] | ||
