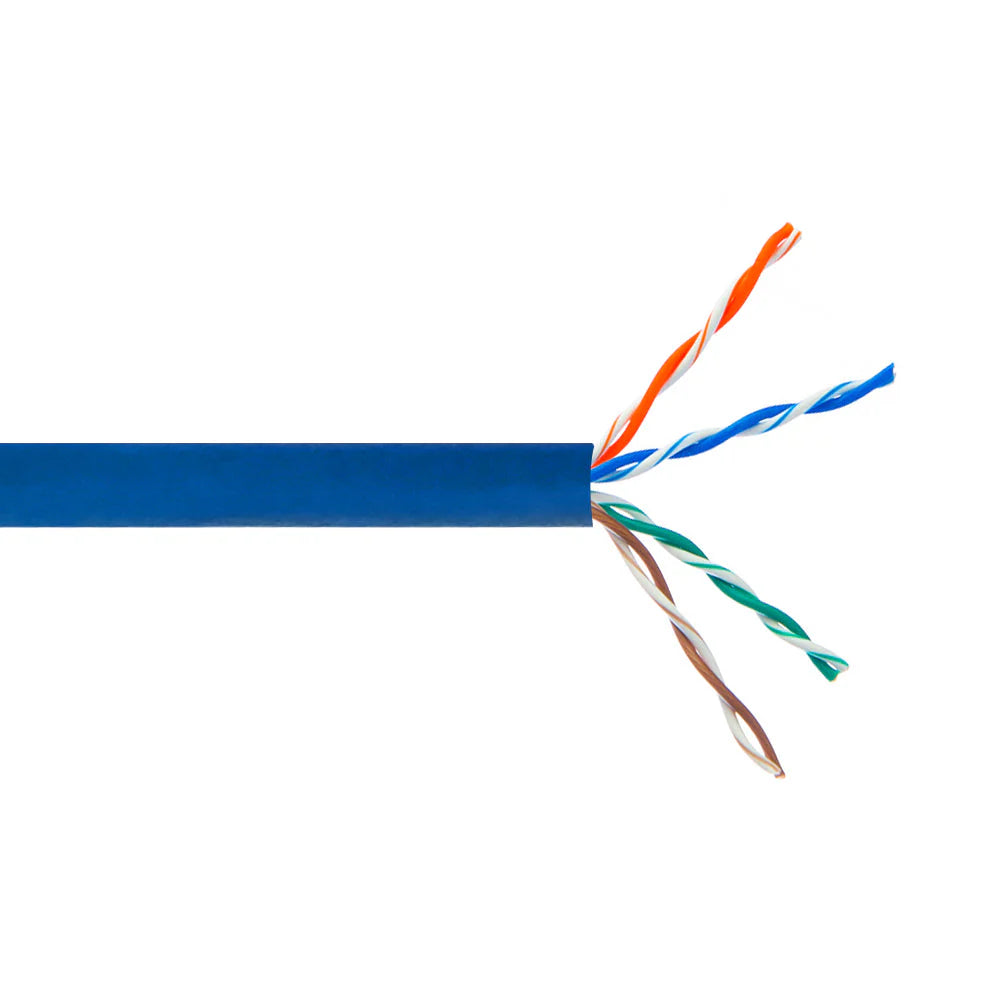

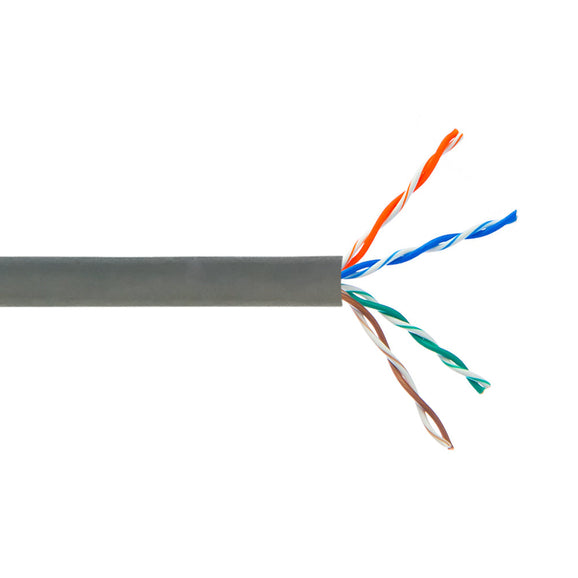

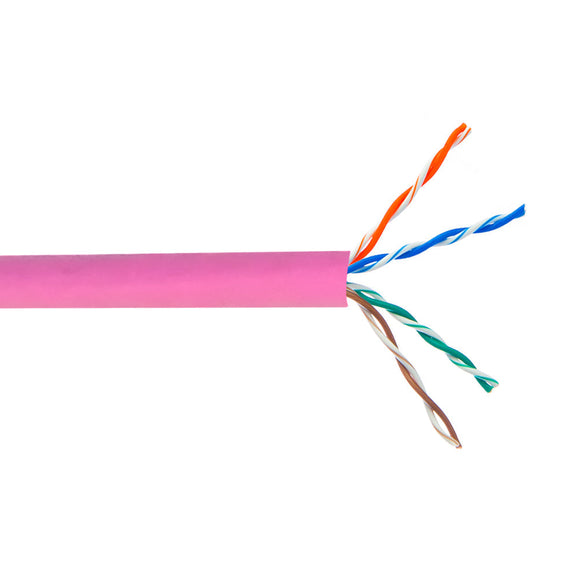

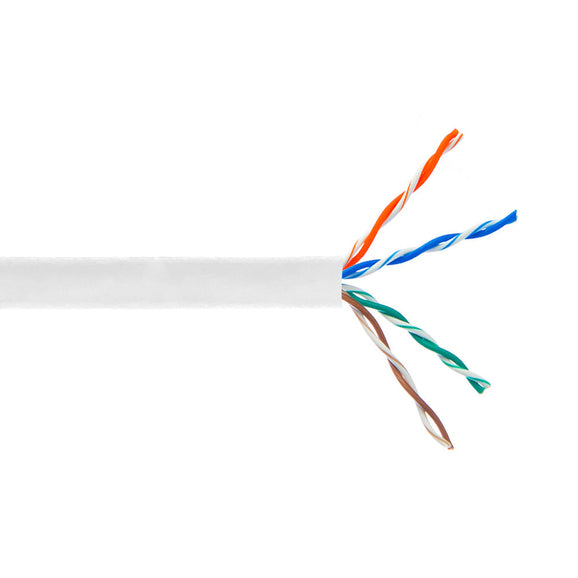

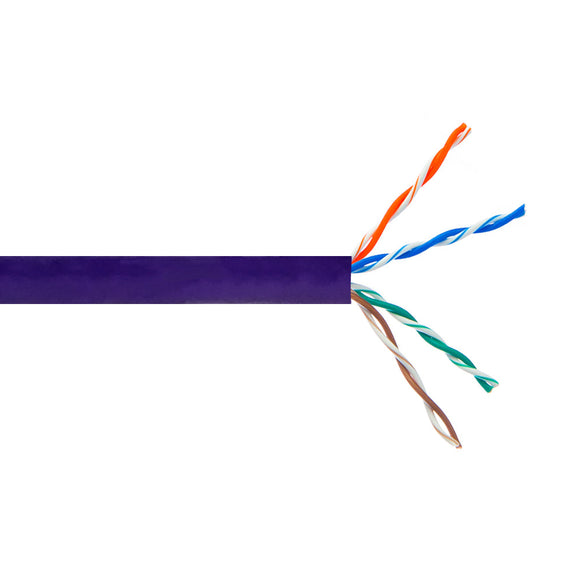

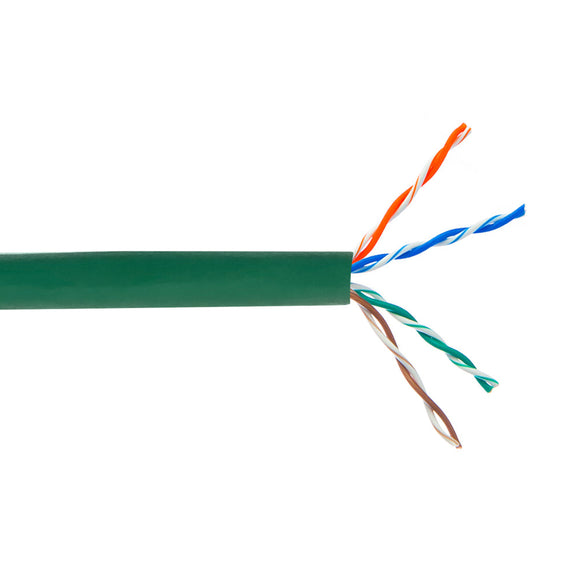

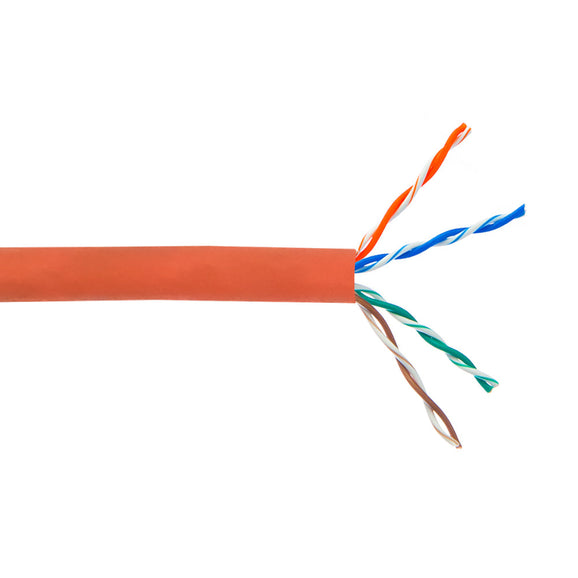

Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 6.20 mm |
| Number of Pairs | 4 Pairs |
| Color of Pairs | White-Blue White-Green White-Orange White-Brown |
| Wire Gauge | 24AWG Stranded |
| Stranding Count & Diameter | 7x0.2 mm BC |
| Insulation Diameter | 0.91 - 0.97mm |
| Conductor Material | 100% Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 [Riser Rated] |
| Jacket Nominal Thickness | 0.5 - 0.6mm |
| Cable Shielding | None |
| Separator | PE Cross |
| Rip Cord |
Yes - Nylon |
| Temperature Rating |
20℃ ~ +75℃ |
| Mechanical Characteristics | |
| Insulation Tensile Strength Before Aging |
>1.68 Kgf/mm² |
| Insulation Elongation Before Aging | >300% |
| Jacket Tensile Strength Before Aging | >1.41 Kgf/mm² |
| Jacket Elongation Before Aging | >100% |
| Conductor Resistance | <93.8 (Ω/km) |
| Insulation Shrink back | 121 x 1hr |
| Insulation Cold Bend | -20 x 4hr |
| Jacket Cold Bend | -20 x 4hr |
| Approvals | |
| c(UL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
|
Product Weight |
28.6 lbs [12.9kg] |
