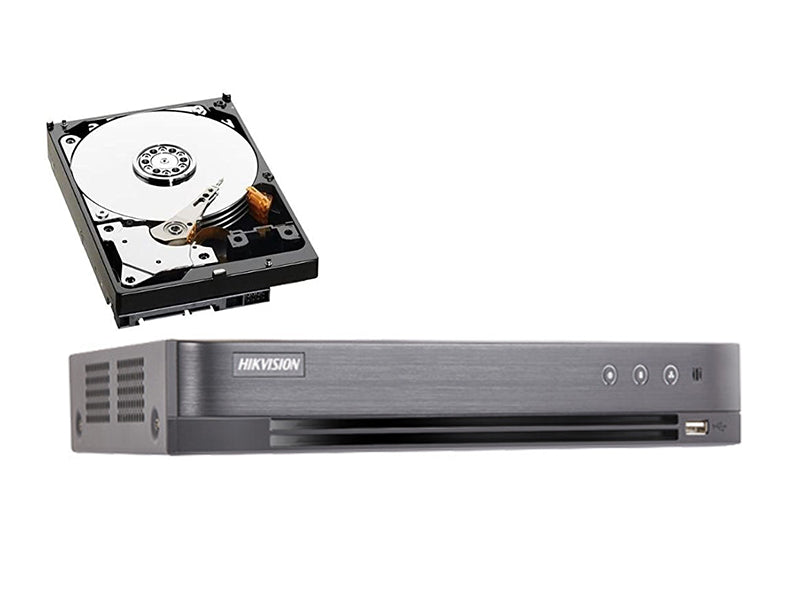

Hikvision DS-7204HUI-K1 TurboHD 4-Channel 5MP Tribrid DVR with 1TB HDD Preinstalled
$312.08
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
Real time 12 visitor right now
PRODUCT INFORMATION
5MP Tribrid DVR with 1TB Preinstalled, Expandable to 8TB
Features
- Manage & Record from Up to Four Cameras
- Up to 5MP Resolution
- 1TB Preinstalled Expandable to 8TB
- H.265+/H.265/H.264+/H.264 Compression
- RCA Audio Input & Output
- Up to 128 Simultaneous Users
- 32 kb/s to 10 Mb/s Video Bit Rate
- CVBS, HDMI, & VGA Outputs
- 2 x USB 2.0 ports
- ONVIF Compliant
- CSA, FCC, CE, and cUL certified
Specification
| Number of Channels | 4 (Video) |
| Playback Resolution |
VGA: 1920 x 1080 at 60 Hz 1280 x 1024 at 60 Hz 1280 x 720 at 60 Hz 1024 x 768 at 60 Hz HDMI: 3840 x 2160 at 30 Hz 2560 x 1440 at 60 Hz 1920 x 1080 at 60 Hz 1280 x 1024 at 60 Hz 1280 x 720 at 60 Hz 1024 x 768 at 60 Hz |
| Recording Resolution | 5 MP |
| PTZ Support | Yes |
| Bit Rate | 32 kb/s to 10 Mb/s |
| IP Camera Support | 2 |
| Dual Streaming | Yes |
| Encoding Resolution | 1080p, 720p, 4CIF, CIF, VGA, WD1, 3 MP, 4 MP, 5 MP |
| 2-Way Audio | Yes |
Connectivity
| A/V Ports | CVBS, HD-TVI: 4 x BNC Video Input (1 V p-p, 75 Ohm) 1 x HDMI Output 1 x VGA Output 1 x RCA Audio Input (2 V p-p, 2 Kilohm) 1 x RCA Audio Output (1 Kilohm, Linear) |
| Communication Ports |
2 x USB Type-A USB 2.0 (Front) 1 x RJ45 Fast Ethernet (Rear) 1 x RS-485 (Rear) |
| Audio Connections | 4 Inputs 1 Output |
| Drive Interfaces | 2 x SATA |
| Wi-Fi | None |
| Remote Connections | 128 |
| Network Protocols | DDNS, DHCP, DNS, HTTPS, Hik-Connect, NFS, NTP, ONVIF, PPPoE, SADP, TCP/IP, UPnP, iSCSI |
| Max Frame Rate | NTSC: 30 fps (1080p) |
Compatibility
| Supported Video Codecs | H.264, H.264+, H.265, H.265+ |
| Supported Audio Codecs | G.711U |
System
| Installed Drive | 1 TB Hard Drive |
| Max Capacity Supported | 8 TB (Total) |
Notifications
| Alarm Connections | 4 Inputs 1 Outputs |
| Event Trigger | Analytics |
Electrical
| Power Consumption | Without HDD: 12 VDC (60 W) |
Environmental
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
Physical
| Certifications | CE, FCC, cUL, as per Manufacturer |
| Built-In Display | None |
| Dimensions (W x D x H) | 12.4 x 9.5 x 1.8" / 31.5 x 24.2 x 4.5 cm |
| Weight | 2.6 lb / 1.2 kg Max. (Without HDD) |
Packaging Info
| Package Weight | 5.25 lb |
| Box Dimensions (LxWxH) | 19 x 11.5 x 3.5" |
