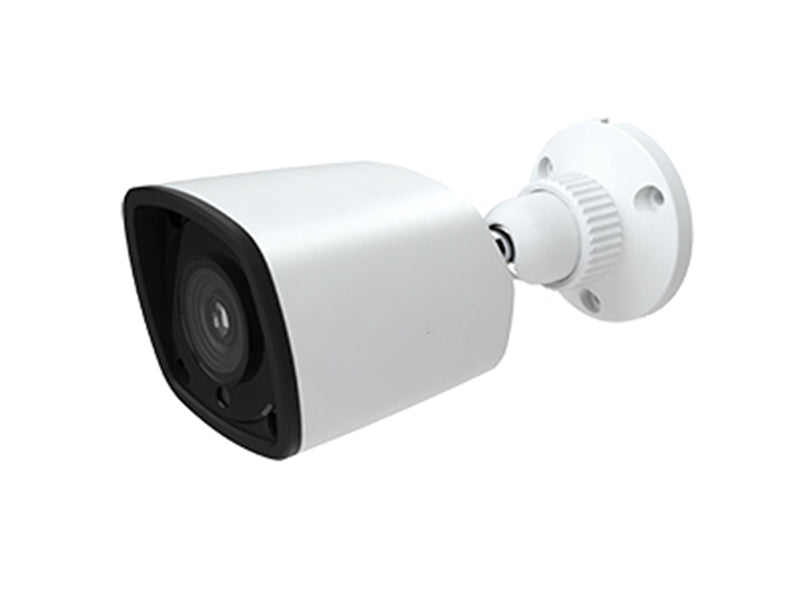

5MP 2.8mm Fixed Len Bullet HD Analog Camera
Hurry up! Sales Ends In
Hurry! Only 10 Left in Stock!
5MP 2.8mm Fixed Len Bullet HD Analog Camera
ID: SEC-CAM-T7451AE1-HDC-5MP
MODEL/PART#: T7451AE1
Features
|
Model |
TD-7451AE1 |
|
Camera |
|
|
Image Sensor |
1 / 2.7 "CMOS |
|
Resolution |
5MP |
|
Image Size |
2592 x 1944 |
|
Video Output |
AHD / TVI /CVI/CVBS |
|
Image System |
PAL / NTSC |
|
Electronic Shutter |
Auto; 1 / 50s ~ 1 / 100000s ( PAL );1 / 60s ~ 1 / 100000s ( NTSC ) |
|
IR Distance |
10 ~ 20 m |
|
Frame Rate |
5MP @20fps |
|
Min. Illumination |
Color : 0.01 lux@F1.2, AGC ON; B/W : 0 lux with IR |
|
Lens |
3.6 mm ( 2.8 mm optional ) |
|
Lens Mount |
M12 |
|
S / N Ratio |
≥52dB ( AGC OFF ) |
|
Ingress Protection |
IP66 |
|
Functions |
|
|
Function Control |
OSD ( COC Control ) |
|
Day & Night |
ICR |
|
Digital WDR |
Yes |
|
Digital NR |
Yes |
|
AGC |
Yes |
|
Auto White Balance |
Yes |
|
BLC |
Yes |
|
Front light Compensation |
Yes |
|
Defog |
No |
|
HLC |
Yes |
|
Sharpness |
Yes |
|
Mirror Image |
Yes |
|
Smart IR |
Yes |
|
Image Setting |
Yes |
|
Defect Correction |
Auto / Manual |
|
Language |
13 languages |
|
Angle Adjustment |
Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360° |
|
Others |
|
|
Power Supply |
DC12V ( ± 10% ) |
|
Power Consumption |
IR OFF : < 1W; IR ON : < 4W |
|
Working Environment |
- 30 °C ~ 50 °C, 10 % ~ 90 %（relative humidity） |
|
Dimensions ( mm ) |
Ф 70 x 156 |
|
Weight ( net ) |
Approx. 0.3KG |
Specification
-5MP@20fps/4MP@30fps image, high resolution, true color
-AHD / TVI / CVI/CVBS standard and lossless video output
-Up to 1500 TVL resolution
-CMOS progressive scan, perfectly capture the moving object
-Support OSD menu
-High speed, long distance and real time transmission
-Auto color to B / W at low illumination
-Support ICR switch, true day / night, WDR
-Support noise reduction function
-10 ~ 20m IR night view distance
-IP66 ingress protection
-Support COC
