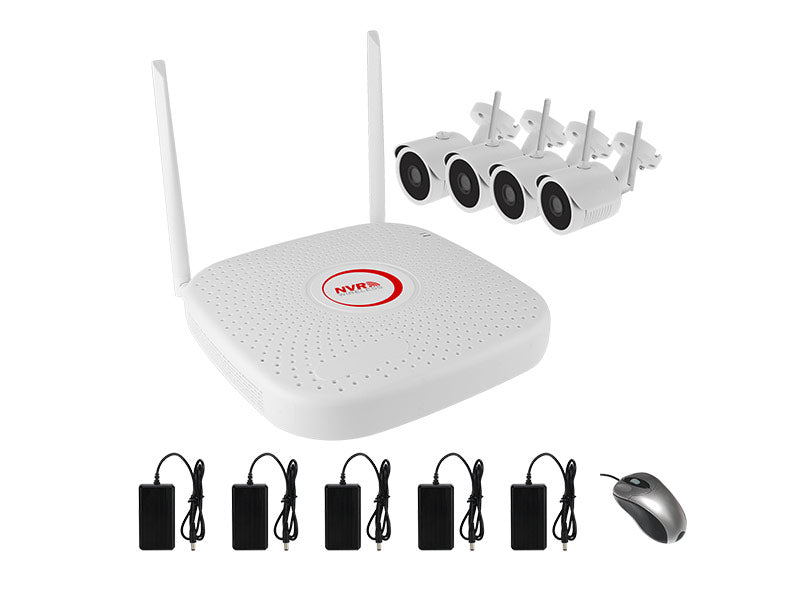

- 1x WIFI NVR H.264
- 4x 1080P Outdoor Bullet IP Camera IR 30m
- 4x DC12V/0.5A Power Adapter for WIFI IP Camera
- 1x DC12V/2A Power Adapter for WIFI NVR
- 1x USB Mouse
Specification
| Model | |
| Model No. |
WIFI2004PG1SE200 |
| Package | |
| NVR |
1x NVR2004PGW |
| Camera |
4 x LBH30SE200W |
| WIFI Range |
No Obstacles 400 Meters Max |
| Mouse |
2xUSB 2.0 Mouse |
| Adaptor |
1xDC12V2A for WIFI NVR |
| Weight |
4.6kg/SET |
| Camera | |
| Camera Model |
LBH30SE200W |
| Image Sensor |
1/2.9" SONY Low Illumination CMOS Sensor |
| Resolution |
2MP 1080P |
| Effective Pixels |
1985(H)*1105(V) |
| Compression |
H.264/JPEG/AVI/MJPEG |
| TV System |
PAL/NTSC |
| Electronic Shutter Time |
Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
| S/N Ratio |
≥52dB |
| Scanning System |
Progressive |
| Video Output |
Network |
| Reset Button |
Optional |
| Lens Type | |
| Focus Length |
3.6mm |
| Focus Control |
Fixed |
| Lens Type |
Fixed |
| Pixels |
3M Pixels |
| Night Vision | |
| Infrared LED |
42µ x 2PCS Optional |
| Infrared Distance |
30M |
| IR Status |
Under 10 Lux By CDS |
| IR Power On |
CDS Auto Control |
| Network | |
| Ethernet |
RJ-45 (10/100Base-T) |
| Protocol |
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
| ONVIF |
Support ONVIF 2.4 |
| P2P |
YES, Support QR Code |
| POE |
/ |
| Video Delay |
0.3S (Within the Lan) |
| Main Stream 1 |
1920 x 1080@1-15fps(default resolution:1920 x 1080/frame rate:15fps/bit rate:2Mbps) |
| Sub Stream 1 |
720 x 480@1-15fps(default frame rate:15fps/bit rate:0.5Mbps) |
| Tri Stream |
354x288@(1-15)fps(default frame rate:15fps) |
| IE Brower |
IE8-11, Google Chrome, Firefox, Safari, Mac Safari |
| Smart Phone |
iPhone, iPad, Android, Android Pad |
| Wireless | |
| Antena |
3dbi |
| Hotspot |
YES |
| Wi-Fi |
Wi-Fi(IEEE802.11b/g/n) |
| WIFI Range |
No obstacles 300m Max. |
| Camera Features | |
| Day/Night |
Color/ B&W (IR-CUT ) |
| Image Config |
Saturation/Brightness/Contrast /Sharpness, Mirror, White Balance, FLK(Flicker Control) |
| Defog Mode |
Yes |
| BLC |
Yes |
| WDR |
YES |
| Motion Detection |
Support |
| Privacy Masking |
3 Rectangular Zone |
| Recording Mode |
NVR/NAS/VMS/Web |
| Language |
Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands, Czech |
| General | |
| Housing |
Metal , IP66 |
| Anti-cut Bracket |
Yes |
| IR Cut Filter |
Yes |
| Operation Temperature |
-10°C ~ +50°C RH95% Max |
| Storage Temperature |
-20°C ~ +60°C RH95% Max |
| Power Source |
DC12V 10%, 500mA |
| Dimension |
157(W) x 70(H) x 66(D)mm |
| Weight |
650g |
| NVR | |
| Model |
NVR2004PGW |
| Main Processor |
ARM Cortex A9 Processor(HI3520D) |
| Operating System |
Embedded LINUX |
| Video Input |
9 Channel( 4xWIFI IP Camera + 5xONVIF Wired IP Camera ), Support 1920x1080, 1280x960, 1280x720 ect... |
| Video Output |
1 VGA, 1 HDMI |
| Audio Input |
No |
| Audio Output |
No |
| Alarm Sensor Input |
No |
| Alarm Sensor Output |
No |
| Alarm Motion Detection |
9 Channel, MD Zones: 396 (22 x 18) |
| Trigger Events |
Recording, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Display HDMI |
resolution: 1920 x 1080P /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz,1024 x 768 /60Hz |
| Display VGA |
resolution: 1920 x 1080P /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz,1024 x 768 /60Hz |
| Display Split |
9 channel / 8 channel / 4 Channel / 1Channel |
| Digital Zoom |
Yes |
| OSD |
Camera Title, Time, Video Loss, Recording, Motion Detection |
| Recording | |
| Video Compression |
H.264 |
| Resolution |
1080P(1920x1080) / 960P(1280x960) / 720P(1280x720) / D1 (704x576/704x480) |
| Record Rate |
PAL :1080P@9x25fps, 960P@9x25fps, 720P@9x25fpss, D1@9x25fps |
| Record Model |
ManualTimerMotion Detection |
| Playback & Backup | |
| Local Sync Playback |
2CH 1080P@30fps, 4CH 720P@30fps |
| Decode Capability |
2CH 1080P@30fps |
| Remote Sync Playback |
Yes |
| Search Mode |
ALL, Channel, Time, Date, Motion Detection |
| Playback Functions |
Play, Pause, Stop, Rewind, Fast Play, Slow Play, Digital Zoom |
| Backup Mode |
USB Device/Network |
| Network | |
| Interface |
4xRJ45(1xWAN + 3xLAN ) 10M/100M Adaptive Ethernet Interface |
| Incoming Bandwidth |
46 MB |
| Network Functions |
HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Search, P2P |
| Onvif Version |
Support Onvif 2.4 |
| Web Browser |
IE6-11, Google Chrome (IE Tab), Firefox (IE Tab) |
| CMS Software |
Support Windows 7/ Windows 8/Windows 10 |
| Cloud Support(P2P) |
Yes |
| Smart Phone |
iPhone, iPad, Android, Android PAD |
| WIFI |
Support, WIFI Range: No Obstacles 300m Max. |
| Storage | |
| Interface Type |
1 SATA Interface |
| Capacity |
Up to 6TB capacity |
| General | |
| Language |
Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa |
| USB Interface |
2 USB 2.0 Interfaces |
| Power Supply |
DC12V/2A |
| Working Environment |
-10~55°C/10~90% |
| Dimension(WxDxH) |
260 x 215 x 43(mm) |
| Weight |
2.0KG (without HDD) |
| Download | |
| User Manual | |
Warranty
| Modcom IT Solutions: |
1 Year |
