10/100/1000 Multimode Media Converter 550m ST (850nm)
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!

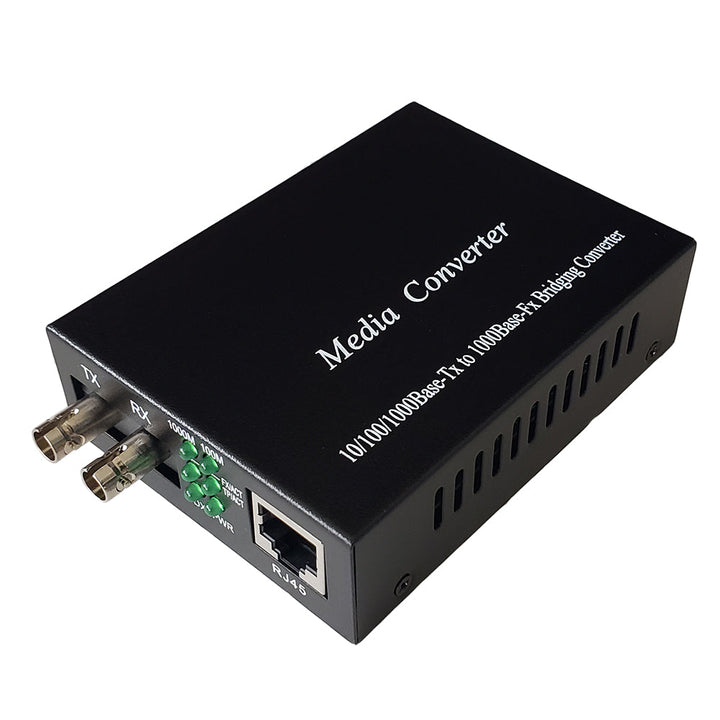

This multimode fiber optic media converter can extend a 10/100/1000 Mbps Ethernet connection up to 550m over a multimode ST fiber optic cable. The converter can be used as a standalone unit or in pairs.
Features
- Supporting IEEE802.3 10 Base-T standard, IEEE802.3u 100Base-TX/FX standard
- Supporting maximum 2M buffer memory built in chip
- Supporting back pressure flow control for full duplex IEEE 802.3X and half duplex
- Supporting automatic identification of MDI/MDI-X cross line
- Supporting high performance 1.4Gbps memory bandwidth
Physical Characteristics | ||
---|---|---|
Color | Black | |
Dimensions | 98mm x 70mm x 26mm (L x W x H) | |
Housing | Metal | |
Operating Temperature | 0℃ ~ 60℃ | |
Relative Humidity | 5% to 90% (non-condensation) | |
Standards | IEEE802.3 10 Base-T
IEEE802.3u 100Base-TX/FX |
|
Power | ||
Power Supply | Outside: 5V DC 2A Built-in: 110-265V AC 48VDC |
|
Connectors | ||
Fiber Connector | ST | |
Ethernet Connector | RJ45 UTP | |
Performance | ||
Referenced Transmission Distance | 50/125, 62.5/125 or 100/140um 2km |
|
Data Forward Rate | 10Mbps, 100Mbps, 1000Mbps | |
Wavelength | 850nm | |
LED | PWR (power LED) 100M (UTP port) FX ACT (Fiber port link/action status LED) 1000M (UTP port speed LED) TP/ACT (UTP port link/action status LED) FDX (UTP duplex LED) |
|
Certifications | ||
CE | Yes | |
FCC | Yes | |
RoHS | Yes | |
Packaging Information | ||
Package Quantity | 1 | |
Product Weight | 0.85 lbs [0.03kg] | |
Warranty Information | ||
Warranty | 1 Year |
