OM4 Multimode 50 Micron Indoor (Corning ClearCurve) - OFNR Riser Fiber Bulk Cable (per meter)
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!

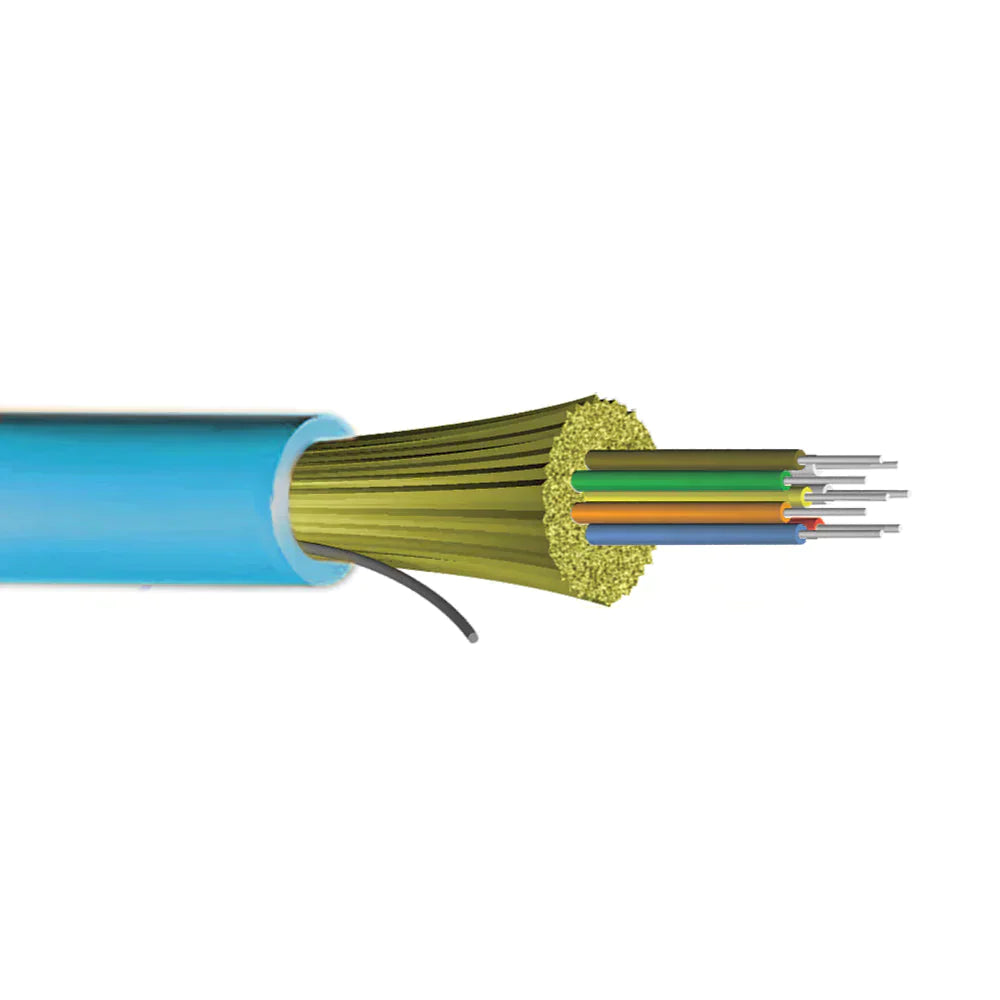

This bulk OM4 fiber cable is indoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It is ideal for routing between communications closets and equipment rooms.
This cable can be used in riser and general inside plant applications.
- Compliant to Directive2002/95/EC (RoHS)
Physical Characteristics | |
---|---|
Color | Aqua |
Fiber Optic Type | OM4 50 micron Multimode Riser Indoor Tight Buffered Cable |
Fiber Count | 6-Strand / 12-Strand / 24-Strand |
Glass Fiber | Corning ClearCurve |
Sub Unit Diameter | 900 Micron |
Nominal Diameter | 4.4mm (6-Strand) 5.5mm (12-Strand) 8.4mm (24-Strand) |
Tension(Installation) | 150 lbs (6-Strand / 12-Strand) 300 lbs (24-Strand) |
Tension(Long Term) | 45 lbs (6-Strand / 12-Strand) 90 lbs (24-Strand) |
Bending Radius(Installation) | 6.6cm (6-Strand) 8.2cm (12-Strand) 12.6cm (24-Strand) |
Bending Radius(Long Term) | 4.4cm (6-Strand) 5.5cm (12-Strand) 8.4cm (24-Strand) |
Operating Temperature | -20Ā°C ~ +70Ā°C |
Storage Temperature | -40Ā°C ~ +70Ā°C |
Installation | -10Ā°C ~ +60Ā°C |
Attenuation Range | @850nm 3.0dB/km @1300nm 1.0dB/km |
Bandwidth Range | @850nm > 3500 MHz/km @1300nm > 550 MHz/km |
EMBc (MHz-km) | 4700 |
Gigabit Ethernet Min. Link Distance | 850nm = 1040 1300nm = 550 |
10 Gigabit Ethernet Min. Link Distance | 850nm = 550 |
Fire Rating | OFNR, FT4 |
Certification(s) | |
ETL | Yes |
c(ETL) | Yes |
Product Support | |
RoHS | Yes |
Reach | Yes |
Country of Origin | USA |
Manufacturer Information | |
AFL Part Numbers | CR006C442C01-CRG CR012C552C01-CRG CR024C842C01-CRG |
Packaging Information | |
Package Quantity | 1 |
6-strand | 12-strand | 24-strand |
---|---|---|
0.07 lbs | 0.09 lbs | 0.11 lbs |
