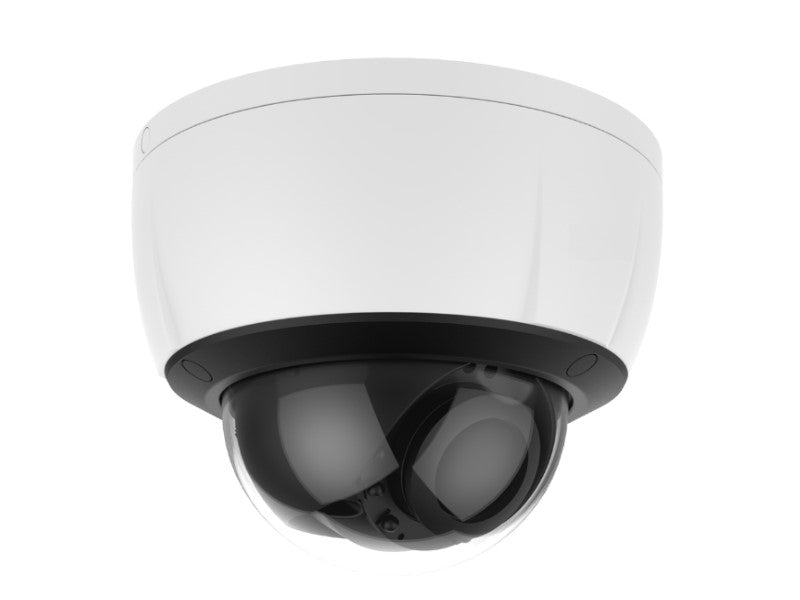

8MP/4K IR Dome IP Camera, 3.6mm Fixed Lens, External SD card slot, Internal POE, support Alarm I/O

$124.99

Hurry up! Sales Ends In

Hurry! Only 10 Left in Stock!

Real time 23 visitor right now
Stripe Shopify Secure AES 256bit PayPal Visa MasterCard Discover Network American Express McAfee Secure
PRODUCT INFORMATION
PRODUCT INFORMATION

Modcom IT Solutions : 1 year warranty



Features

Support External SD Card Slot (Max. 512GB)

Support Internal POE

Support Alarm I/O & Audio I/O

8MP 3.6mm Lens

1/1.8' OV  High-resolution CMOS Sensor

HISILICON HI3516A, DWDR, 3D NR;  With IRCUT

IR LED: 42µ x 4PCS

IR range: 30M

Main Stream: 8M@20fps, 6M/5M/4M/1080P@30fps

Water resistance: IP66

AntiCut 3Axis Bracket

IMX274 + Hi3516A (H.264/H.264+) (H.265/H.265+)

Specification



Model NO.

IPDJHV800

Camera

Image Sensor

1/1.8' OV  High-resolution CMOS Sensor

Resolution

8MP

Effective Pixels

3840(H)*2160(V)

Compression

H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG

TV System

PAL/NTSC

Electronic Shutter Time

Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec

Minimun Illumination

0.01Lux

S/N Ratio

≥52dB

Scanning System

Progressive

Video Output

Network

Reset Button

Optional

Lens

Focus Length

Board Lens 3.6mm

Focus Control

Fixed

Lens Type

Fixed

Pixels

/

Night Vision

Infrared LED

42µ x 4PCS

Infrared Distance

30M

IR Status

Auto Control

IR Power On

Auto Control

Network

Ethernet

RJ-45 (10/100Base-T)

Wireless

/

Protocol

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP

ONVIF

Support ONVIF 2.4

P2P

YES, Support QR Code

POE

Internal, Support IEEE 802.3af

Video Delay

 0.3S (Within the Lan)

Main Stream 1

3840*2160 @20fps

3072*2048@30fps

Main Stream 2

2592*1944@30fps

2560*1920@30fps

Main Stream 3

2560*1440@30fps

1920*1080@30fps

1280*720@30fps

Sub Stream 1

720*480@20fps

720*480@30fps

Sub Stream 2

/

Sub Stream 3

/

Tri Stream

352*288@20fps

352*288@30fps

IE Brower

IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53),

Mac Safari(lower than version 12)

Smart Phone

iPhone, iPad, Android, Android Pad

Camera Features

Day/Night

Color/ B&W (IR-CUT )

Image Config

Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance,

FLK(Flicker Control), Video Tampering

Full Starlight

/

Corridor Pattern

Support

Defog  Mode

Support

ROI

Support

BLC

Support

HDR

/

WDR

DWDR: 50dB

Motion Detection

Support

Privacy  Masking

3 Rectangular Zone

Recording Mode

NVR/CMS/Web

Language

Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi,

German, Russian, French, Korean,

Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,

Czech, Vietnamese

Interface

Audio

Optional

Alarm

/

SD Card Slot

Optional, Support Max 512GB

RS485

/

General

Housing

IP66

Anti-cut Bracket

NO

IR Cut Filter

YES

Operation Temperature

-20℃ ~ +60℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 750mA

Dimension

φ159 x 132(H)mm

Weight

1.4Kgs
